TDSN52 Speed Gearbox For Twin Screw Extruder Parts/Rubber And Pladtic Machinery

Twin Screw Gearbox Features
--- High Speed
---Triaxiality parallel design improve B axis bearing capacity.
---Simple manufacture and convenient assemply.Lower the cost.
---Modular structure design achieve two kinds of gearbox torque grade.

Twin Screw Gearbox Introduction

Twin Screw Gearbox adopting latest standard ISO1328,the precision of cylindrical gear of spherical involute, and combining our long term experience and specialty of twin-screw extruders, TDSN gearboxes are meticulously designed with top advanced designing ideas in the world for co-orientated rotating twin-screw extruders, with entirely independent Intellectual Property Rights.
The gears are made of carburizing steel of high-strength alloy of good quality by carburizing and quenching for teeth, of which all the gear grinding processes are finished by imported gear grinding machines. Gear parameters are optimized and specially designed for the characteristics of twin screw extruders, reducing stress concentration on root of gear and improving gear surface conditions. We have improved gear intension of flexural fatigue, fatigue strength and ratio of wide diameter. We have also adopted the latest designing idea and technology of heating treatment for the structure of gears, thereby ensured gears from uniformity of precision and strength.

Twin Screw Gearbox Parameters

Production Process

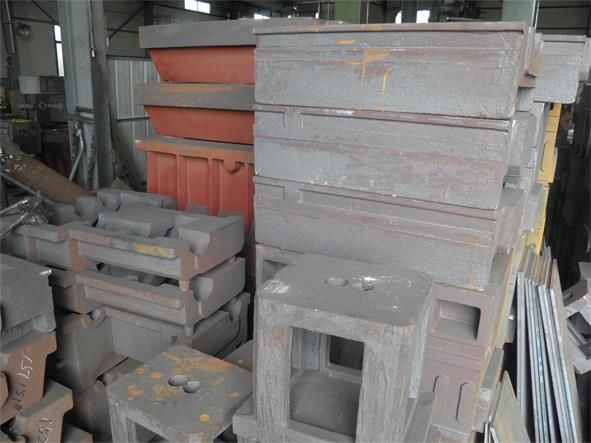

	NO.1 Workblank Select high quality and hardness of ductile iron material.
NO.2 Rough Machining Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.
	NO.3 Finish Machining Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.

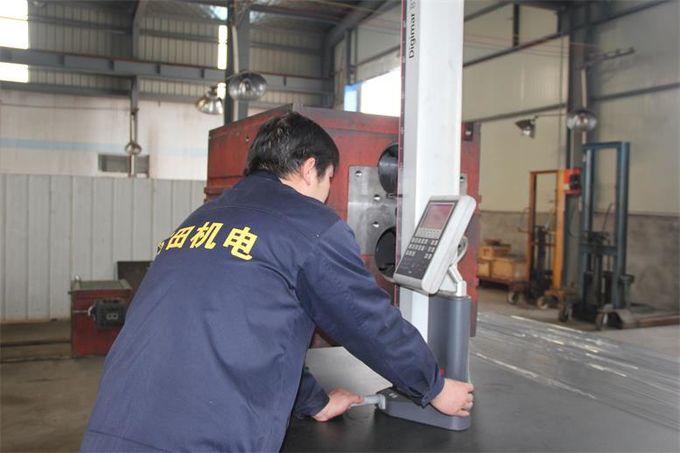

NO.4 Gearbox Inspection High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.

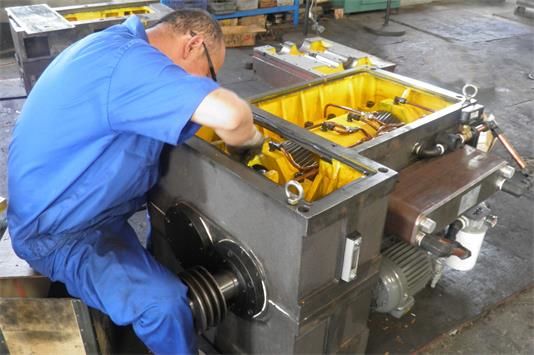

	NO.5 Assemble Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.

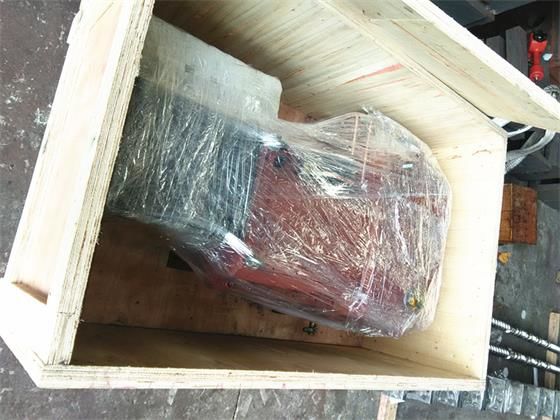

NO.6 Delivery Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.

FAQ

How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.

What machine does the product apply to?

---Twin Screw Extruder Machine.

Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.

Zhitian specializes in the production of extruder parts, with 20 years of experience in research and manufacturing. We professionally produce components such as gearboxes, barrels, and screw elements. Additionally, we offer repair services and custom design based on samples provided by our clients.

Zhitian is also dedicated to the development of nickel-based alloy materials. Utilizing advanced techniques like laser cladding and cold isostatic pressing, we apply these materials to components such as barrels and liners. This innovation meets our customers' needs for corrosion resistance, wear resistance, and high-temperature alloys.

My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in well-known brands.

All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!
