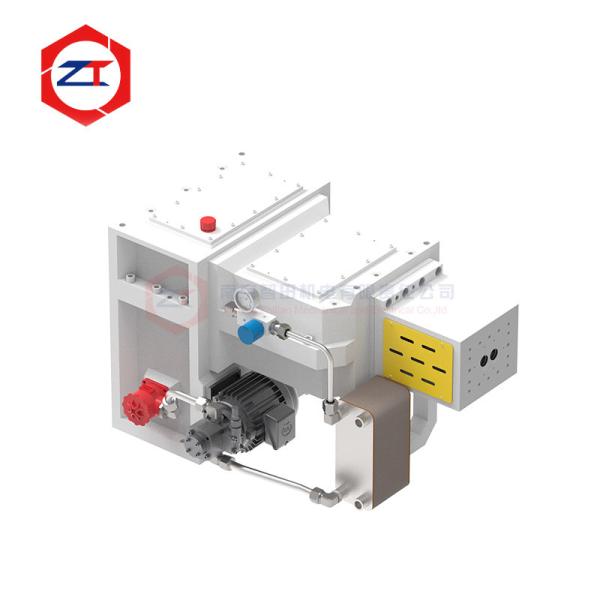

TDSN40 High Speed Gear Box 350kg Weight For Rubber Machinery

Twin Screw Gearbox Features
--- High Speed
---Triaxiality parallel design improve B axis bearing capacity.
---Simple manufacture and convenient assemply.Lower the cost.
---Modular structure design achieve two kinds of gearbox torque grade.

Twin Screw Gearbox Introduction

The TDSN twin screw gearbox is engineered to meet the latest ISO1328 standards, utilizing precision cylindrical gears with spherical involute profiles. Leveraging our extensive experience and expertise in twin-screw extruders, the TDSN gearboxes are meticulously crafted using world-class design concepts specifically for co-rotating twin-screw extruders, and they feature fully independent intellectual property rights.

The gears are manufactured from high-quality, high-strength alloy carburizing steel, with teeth undergoing carburizing and quenching processes. All gear grinding operations are performed using imported gear grinding machines to ensure precision. Gear parameters are optimized and specifically designed to suit the operational characteristics of twin-screw extruders, effectively reducing stress concentration at the gear roots and enhancing surface conditions.

We have significantly improved the gear’s flexural fatigue resistance, fatigue strength, and the width-to-diameter ratio. Additionally, the latest design principles and heat treatment technologies have been applied to the gear structure, ensuring uniform precision and strength across all components.

Twin Screw Gearbox Parameters

Production Process

	NO.1 Workblank Select high quality and hardness of ductile iron material.
NO.2 Rough Machining Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.
	NO.3 Finish Machining Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.
NO.4 Gearbox Inspection High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.
	NO.5 Assemble Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.
NO.6 Delivery Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.

FAQ

What parts does the product contain?

---Gearbox baby,Coupling,Spline,External oil circulation system,Operating instructuins and so on.

How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.

Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.

Zhitian specializes in the production of extruder parts, with 20 years of experience in research and manufacturing. We professionally produce components such as gearboxes, barrels, and screw elements. Additionally, we offer repair services and custom design based on samples provided by our clients.

Zhitian is also dedicated to the development of nickel-based alloy materials. Utilizing advanced techniques like laser cladding and cold isostatic pressing, we apply these materials to components such as barrels and liners. This innovation meets our customers' needs for corrosion resistance, wear resistance, and high-temperature alloys.

My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in well-known brands.

All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!
