Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type

Product Categories
Nanjing Zhitian Mechanical And Electrical Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type from wholesalers

    Buy cheap Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type from wholesalers
    • Buy cheap Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type from wholesalers
    • Buy cheap Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type from wholesalers
    • Buy cheap Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type from wholesalers

    Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type

    Ask Lasest Price
    Brand Name : ZHITIAN
    Model Number : ZE62
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200pcs/per year
    Delivery Time : 40-50 days after order confirmed
    • Product Details
    • Company Profile

    Pvc Gear Screw Shaft For Plastic Twin Screw Extruder Involute Inner Spline Type

    Gear Screw Shaft Pvc Screw Shaft For Plastic Extruder Involute Inner Spline Type Twin Screw Extruder Screw Shaft

    Product Name
    Twin screw shaft
    Material
    WR15E WR30 40CrNiMo
    Color
    Metal
    Model number
    ZE62
    Spline
    involute inner spline
    Brand
    Zhitian
    Size
    Dia 10-120mm/ L 500-900mm
    Screw combination
    Brick patern construction

    As the twin screw extruder moves toward high speed and high torque, higher requirements are placed on the strength (especially thermal strength) and accuracy of the twin screw extruder shaft, Through extensive research and painstaking research, our company adopts impots impoted pre-hard alloy tool steel from Germany. The spline processing adopts cold rolling processing of imported CNC equipment form Europe. The products have been tested by customers and fully meet the performance quality requirements of similar imported high end products.


    Cold Rolling Shaft Production Equipment


    Screw Cold Rolling Shaft For Twin Screw Extruder Involute Inner Spline Type 0


    Screw Cold Rolling Shaft For Twin Screw Extruder Involute Inner Spline Type 1


    We manufacture screw shafts for co-rotating twin screw extruders ranging from Length within 1500mm. With cooling system /without cooling system. Our manufacturing specializes in shafts for twin screw extruders and is optimized for flexible order handling.


    Screw Cold Rolling Shaft For Twin Screw Extruder Involute Inner Spline Type 3


    Types of shaft:


    Single keyway Square keyslot High torque key button Dual keyslot

    Involute inner spline Round keyslot Retackle spline Client requirements available


    Screw Cold Rolling Shaft For Twin Screw Extruder Involute Inner Spline Type 4

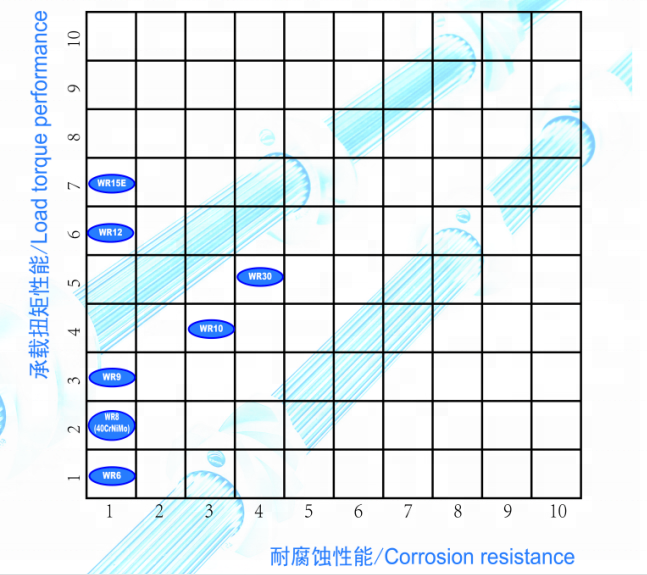

    Material choice:


    WR15E WR30 40CrNiMo


    Ralloy WR15EWR3040CrNiMo
    Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by:Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by40CrNiMo i a kind of alloy constructional steel.
    Excellent tensile strength combined with good toughnessSuperior corrosion resistance
    High thermal stability, high resistant to thermal shocksExcellent machinablity
    Good high-temperature strengthHigh dimensional stablity after heat treatment.
    Good machinability and polishablityExcellent grinding and polishing ability to obtain optimal surface quality
    Excellent through-hardening propertiesHigh durability by maximun hardness under static and dynamic demands
    Good dimensional stability during hardening.Good wear resistance
    High temper resistance up to 500 °C

    Screw Cold Rolling Shaft For Twin Screw Extruder Involute Inner Spline Type 5

    Company Profile.
    NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 20 years experience. Manufacturing gearboxes ,barrels and screw elements of twin screw extruder.We also provide you the refurbishment service for gearboxes and barrels.
    My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in Leistritz,Coperion, Berstorff, JSW, Toshiba, Jwell, Steer and other well-known brands.
    All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!

    Packing&Delivery

    Packing Details: According to your order quantity packaging,shipping wooden boxes,air carton.
    Delivery Details: 5-60days after order.

    1.Rust-proof oil processing,
    Prevent rust in transit.

    2.Oiled paper packages,
    Prevent oil dry.

    3.Bubble wrap package,
    Prevent collosions.

    4.Special foam packaging.5.Packing6.Sealing

    FAQ



    How long does it take to get my products since I paid for them?
    ---According to yout order quantity,we will give you a reasonable delivery date.

    Can I get the warranty of one year for free?
    ---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

    How long will your product last?
    ---I am sorry that I can not accurately answer your question,which is quite different from your operation time,materials and materials.

    How is your after-sale service?
    ---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
