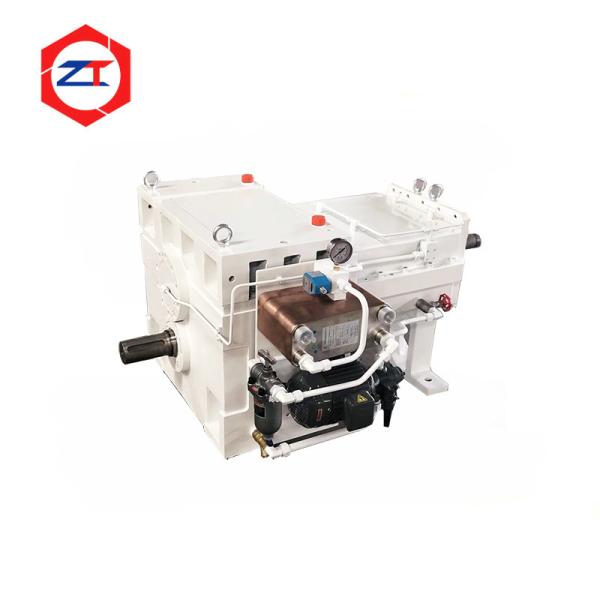

Cast Iron Twin Screw Extruder Elements / Extrusion Machine High Speed Gear Box
High Speed Gear Box Key Features
---Solid and optimized structure minimizes vibration.
---Precision gear grinding to keep operation noise very low.
---Forced lubrication and cooling filter system to ensure excellent
heat dissipation.
---All bearings are sourced from global recognized brands.
High Speed Gear Box Quick Details
Product Name:TDSN GEARBOX MIDDLE TORQUE EXTRUDER GEARBOX
Material: Cast Iron
Color: Red or White
Exprience:20 years
Packaging: Wooden Box
Lead Time: 30-60 days
High Speed Gear Box Parameters
| TDSN Gearbox Power&Torque Table | |||
| Model | RPM(r/min) | Power(kw) | Torque Grade(T/A3) |
| TDSN-50 | 500 | 55 | 7.08 |
| 600 | 75 | 8.06 | |
| TDSN-65 | 500 | 90 | 6.11 |
| 600 | 110 | 6.22 | |
| TDSN-75 | 500 | 132 | 5.84 |
| 600 | 160 | 5.89 | |
High Speed Gear Box Production Process
Workblank
Select high quality and hardness of ductile iron material.
Rough Machining
Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.
Finish Machining
Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.
Finish Machining
Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.
Gearbox Inspection
High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.
Assemble
Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.
Delivery
Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.
About US
NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 13 years experience. Manufacturing gearboxes,barrels and screw elements of twin screw extruder.We also provide you the refurbishment service for gearboxes and barrels.
|
|
